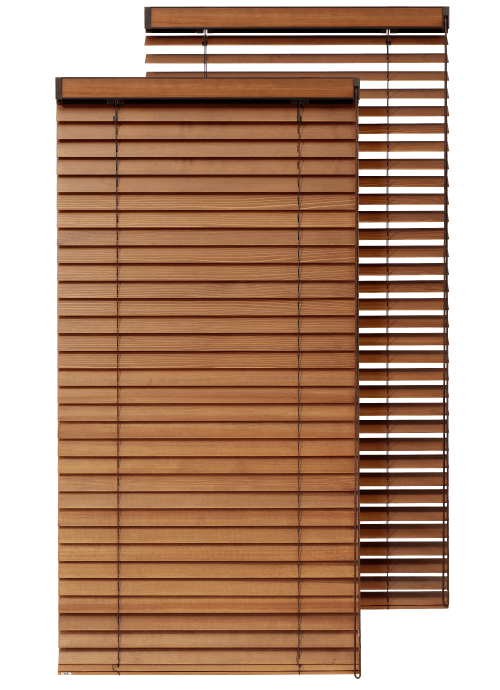

SUGI SERIES WOOD BLINDS
![SUGI SERIES WOOD BLINDS](../../../img/en/products_sugi_pic1.png)
![SUGI SERIES WOOD BLINDS](../../../img/en/products_sugi_pic2.png)
The Sugi Series is made from high-grade straight-grained Japanese cedar “Sugi” wood. The natural beauty of the wood grain, combined with the warm texture of Sugi, seamlessly integrates into any space.
About Japanese Cedar “Sugi”
![About Japanese Cedar “Sugi”](../../../img/en/products_aboutcedar.png)
Sugi has played a significant role throughout Japan’s history as a symbol of Japanese culture. Due to its beauty and durability, Sugi has been extensively used in historical structures such as temples and shrines for over 1000 years.

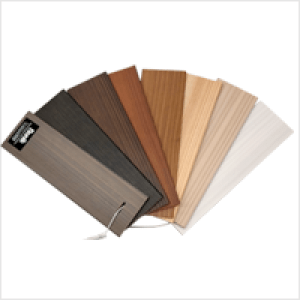

8 Standard Colors (Custom Color Matching Available)
![8 Standard Colors](../../../img/en/products_8colors.png)
Available in 8 colors that enhance the natural grain and warm wood texture of Sugi.
View 8 Standard Colors
5001 Shiro[ Headrail & Cord color ] white
5002 Ivory[ Headrail & Cord color ] Ivory
5003 Grey[ Headrail & Cord color ] Bronze
5004 Kurocha[ Headrail & Cord color ] Bronze
5005 Clear[ Headrail & Cord color ] Ivory
5006 Medium Brown[ Headrail & Cord color ] Bronze
5007 Burgundy[ Headrail & Cord color ] Bronze
5008 Vista[ Headrail & Cord color ] Bronze
Cloth Tape for 50mm(2")
slat (Charged Option) -26 Colors
2033 Black
2005 White
2136 Duck White
2617 White Smoke
2255 Grey
2057 Midnight Blue
2293 Provence Blue
2663 Atlantic Blue
2295 Lake
2294 Celadon
2142 Dark Green
2234 Forest
2500 Moss
2266 Mulberry
2292 Bordeaux
2471 Pompeii
2545 Rust
2546 Cappuccino
2339 Butterscotch
2710 Wheat
2403 Pecan
2297 Cocoa
2353 Chocolate
2659 Taupe
2011 Dark Beige
2137 Light Beige
Sugi Series Wood Blinds Product Specifications
Product Name | Sugi Series Wood Blinds |
---|---|
Slat Material | Solid Japanese Cedar |
Slat Dimensions | Width : 50mm(2″) Thickness : 2.9mm(0.115″) |
Slat Finishing Colors | 8 Standard Colors (Custom color matching available.) |
Maximum Size | 9.0㎡ (97ft²) |
Minimum and Maximum Width | 280mm(11″)~2700mm(106-1/4″) |
Minimum and Maximum Height | 300mm(12″)~3600mm(141-3/4″) *Please inquire for sizes over 3660mm(144″) |
Order Size Increments | 1mm(1/16″) |
Lift & Tilt Operation Method | Monocontrol by loop cord.〈Simpull Ⅱ〉(*) |
Control Loop Cord | Polyester/3 Colors Length of Loop Cord: Standarized depending on blind height. (Please see chart below.) Length of loop cord can be changed to other standard loop cord length at the time of order free of charge. Special length loop cord can be orderd.” |
Headrail | Aluminum/3 Colors/Built-in wooden valance in slat color on the front side. (Built-in wooden valance on the backside available as an option.) |
Standard Accessories | Mounting Brackets, Screws, Child Safety Clip, Instruction Manual |
Options (Additional Charge) | |
Built-In Wooden Valance for backside of headrail. | Built-in wooden valance for back side of headrail can be equipped as an option. (Built-in wooden valance for front side of headrail comes equipped standard.) |
Cloth Tape* | Width: 38mm(1-1/2″)/26 Colors *Available only for 50mm(2″)slats |
Custom Color | Available for wood parts. |
Special Length Loop Cords | Available in increments of 100mm(4″). |
Blind Height | Length of Loop Cord |
---|---|
~900mm(35-7/16") | 600mm(23-5/8") |
~1200mm(47-1/4") | 900mm(35-7/16") |
~1500mm(59-1/16") | 1200mm(47-1/4") |
~1800mm(70-7/8") | 1500mm(59-1/16") |
~2400mm(94-1/2") | 1800mm(70-7/8") |
~2700mm(106-5/16") | 2100mm(82-11/16") |
~3000mm(118-1/8") | 2400mm(94-1/2") |
~3300mm(129-15/16") | 2700mm(106-5/16") |
~3660mm(144-1/8") | 3000mm(118-1/8") |
Diagram of Parts and Structure
Standard Accessories
The quantity for each accessory will be determined by the size and the order specification.

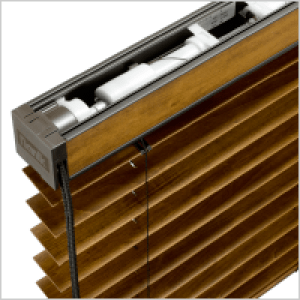

Smooth and Easy Operation (Simpull II)
![Smooth and Easy Operation (Simpull II)](../../../img/en/products_simpull2.png)
Nanik wood blinds are equipped with our original lift and tilt mechanical system – Simpull II.
Simpull II allows for easy operation of the blind with a lift cord pull force of less than 2.5kg (5.5lbs), even for blinds up to 9㎡ (97 sq feet) in size.
Headrail and Cord Colors
Please refer to the Premium Series Wood Blinds 73 Standard Colors to see the mechanical colors and code colors that correspond to the finish color of the blind.
![Headrail and Cord Colors](../../../img/en/products_cordcolors_pc.png)
Delivery
Delivery will be made in 3 weeks after the order is fixed.
For orders above 70m² (753ft²)/order, please confirm for ship dates.
Product Warranty
The product warranty period is one year from the shipping date of the original purchase. If a defect occurs in the product within one year from the shipping date, provided correct installation and usage instructions were followed, we will send replacement parts along with replacement instructions. If you choose to have the repair done by us, you will be responsible for the round-trip shipping costs, and repairs will be conducted at our Nasu Factory.
